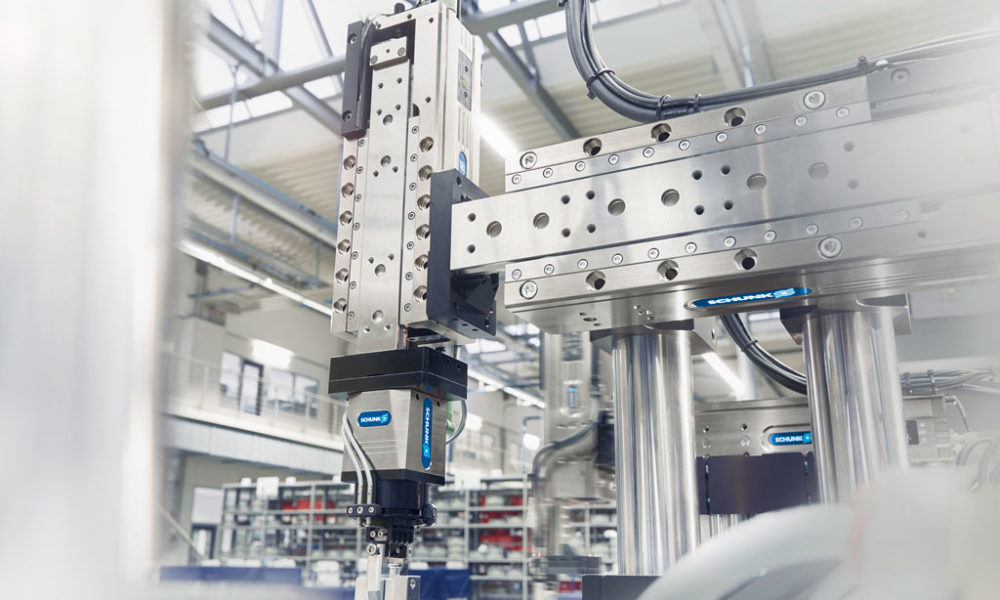

SCHUNK models digital gripper twins for high-performance assembly

Chicken or egg? – By going digital of assembly systems, this famous question will soon be cleared up. SCHUNK is beginning to digitalise its entire gripper range and thus paves the way for virtual commissioning and simulation of complete handling solutions. With the aid of the mechatronics concept designer from Siemens PLM Software and the Digital Twins from SCHUNK, designers and systems planners will soon be in a position to simulate complete assembly systems in 3D and virtually depict the entire engineering process from the concept to mechanics, electronics and software, right up to commissioning. Instead of the classical CAD cover model, a detailed digital image of the individual components appears, including their full functionality. The Digital Twin comprises the CAD volume model with all geometric data for modelling in Siemens NX, CAE data (EPLAN), and a kinematic behaviour model in which the stroke, extension and retraction speed, acceleration, jerk, nominal force and mass are stored. In addition, SCHUNK seeks to extend its Digital Twins in a second step in the future with a range of PLC components for virtual commissioning (soft-ware/hardware in the loop).

Clear shortening of project duration
The integrated engineering with the aid of virtual simulation enables systems constructors and users a significant shortening of project duration, faster commissioning and clear effi-ciency effects for repeated implementation of similar systems. All relevant planning steps from calculation of the cycle times to designing the components with respect to traverse path and stroke as well as collision calculations can be completely virtually covered by the engineering software. Besides savings of 30 per cent on pure engineering time, systems constructors and users also benefit from significantly reduced project duration. Instead of only beginning programming after physically assembling the system, as had normally been the case until now, all individual processes can be systematically coordinated, programmed and optimised in the form of relative conditional rules using the virtual model. Furthermore, the virtual model forms the basis for follow-up and real-time control in on-going production. In the first step, SCHUNK digitalises its 24V mechatronics range for high-performance assembly. It comprises the parallel grippers SCHUNK EGP and EGL, the linear modules SCHUNK ELP, the rotary gripping modules EGS and the rotary modules ERS. The data can be requested from SCHUNK directly.

Contact

Schunk Intec India Pvt Ltd
No 80 B, Yeshwanthpur Industrial Suburbs,
Bengaluru – 560022
Tele: +91-80-40538999
Fax: +91-80-40538998
Email: info@in.schunk.com
www.in.schunk.com
