Frequency inverter for high-efficiency conveyor technology applications

By OEM Update Editorial July 29, 2021 5:51 pm IST

The frequency inverters from NORD DRIVESYSTEMS are compact and work highly energy-efficient.

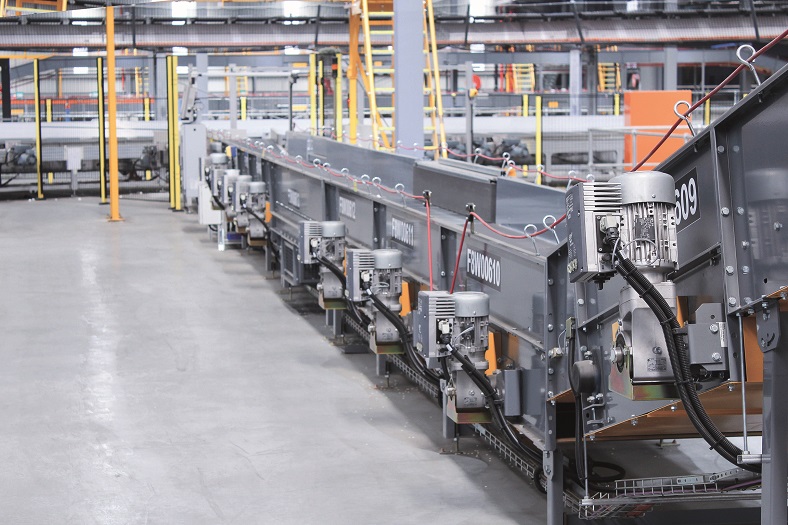

NORDAC FLEX frequency inverters from NORD DRIVESYSTEMS are true allrounders: They not only offer a wide power range, but also work very economically. The NORDAC FLEX SK 205E series has been specially designed for use with baggage transport systems at airports or conveyor systems in parcel distribution centres.

NORDAC FLEX SK 205E series frequency inverters feature 4 digital inputs and 1 digital output (e.g. for error messages). The inverter can be monitored via an optional Bluetooth interface using the NORDCON APP software. This way, possible errors can be quickly diagnosed and remedied. Drive parameterisation is possible as standard via the integrated diagnostic interface with the free NORDCON software tool.

The inverter features a total of six digital and two analogue interfaces, two encoder interfaces and one integrated PLC for programming of functions close to the drive. A wide range of extensions through option modules are possible as accessories, for example a communication interface that supports commercially available Ethernet dialects as well as extensions for functional safety such as PROFIsafe and STO.

For more info, visit: www.nord.com
