Introducing high-performance multifunctional drive – FRENIC Mega G2

By Staff Report August 22, 2025 12:56 pm IST

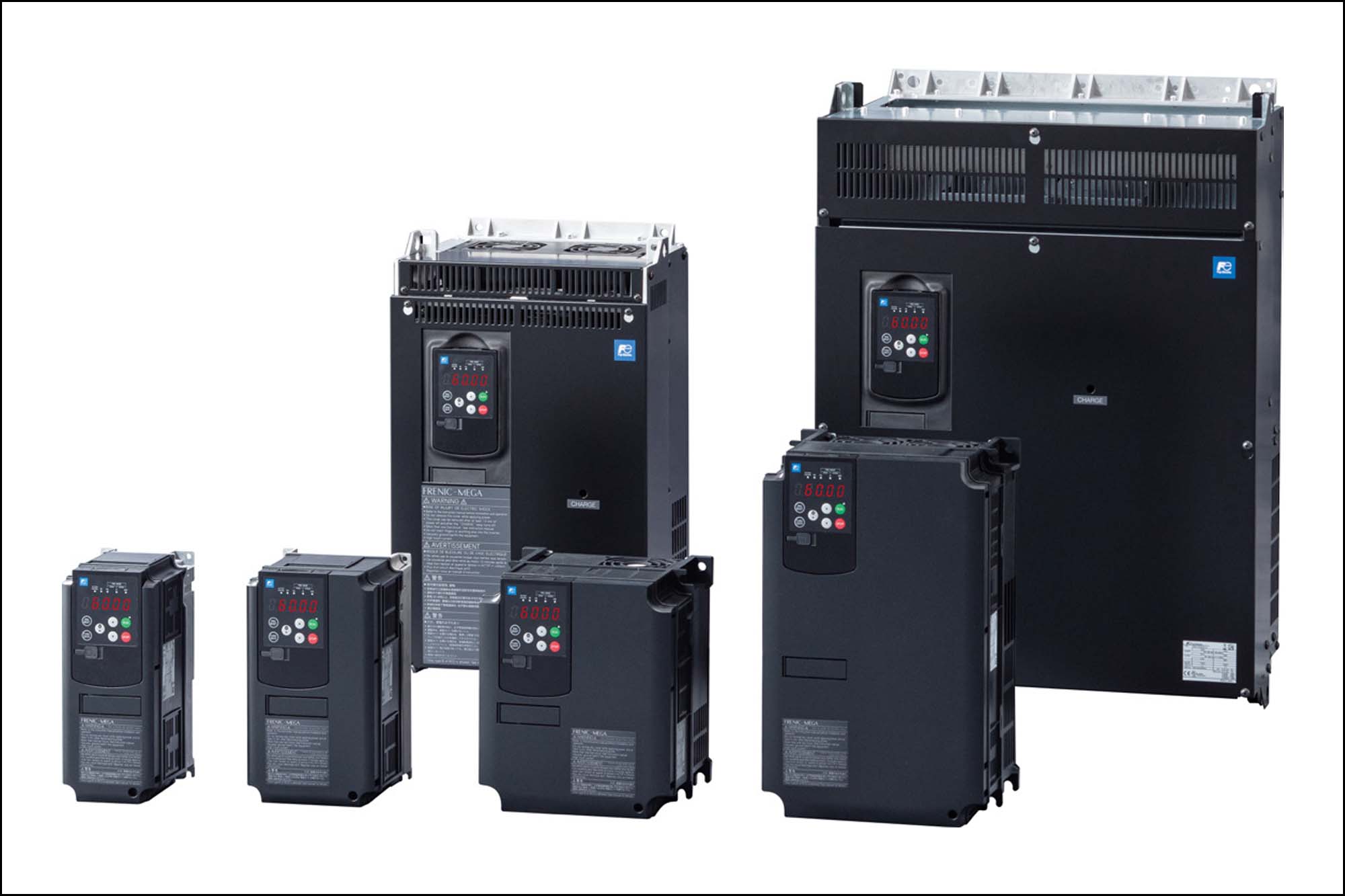

The FRENIC-MEGA G2 by Fuji Electric is a high-performance, multifunctional inverter which provides advanced control, exceptional reliability, and energy efficiency.

The FRENIC-MEGA G2 inherits the excellent performance specifications and functionality of the G1 Series while providing a more stylish design. It represents an unrelenting pursuit of performance and functionality to further enhance adaptability. It is time to experience the fullness of the MEGA Series world.

As the successor to the renowned G1 Series, the FRENIC-MEGA G2 provides an intuitive design with an exceptional level of flexibility, functionality, and reliability to meet the diverse needs of applications on all types of industrial equipment.

With its advanced core features, the FRENIC-MEGA G2 demonstrates advanced responsiveness, allowing you to achieve optimal control and precision in your operations. Whether you’re driving motors, controlling pumps, or managing various industrial processes, this powerful drive delivers continuous performance and efficiency.

The FRENIC-MEGA G2 offers environmentally friendly features that help you reduce energy consumption and minimise your carbon footprint. Combining sustainability with functionality, it sets a new standard for responsible and efficient operation.

Benefits

➢ High basic performance

•  Enables vector control with and without sensors
•  Improves current and speed response and enhances the speed control range
•  Comes with a built-in braking transistor with a capacity up to 75 kW

➢ Various applications

•  Comes with a variety of functions suitable for different applications. (Improves automatic energy-saving operation, braking transistor damage detection, braking signals, etc.)
•  Comes with customised logic functions. (260 programming steps)
•  Compatible with network protocols

➢ Easy maintenance

•  Improves work efficiency by simplifying wiring and setup
•  Enhanced life cycle diagnosis and maintenance functions. (Cooling capacity reduction, IGBT life expectancy, main circuit capacitor, etc.)
•  Achieves long main component life

➢ Environmental resistance

•  Improves environmental performance (Enhances operating ambient temperature by 55°C, improves PCB coating, etc.)
•  Compliant with the revised European RoHS Directive
•  Conforms to overseas safety standards.

Other Key Features of the FRENIC-MEGA G2:

• It is a general-purpose inverter with best-in-class vector control, capable of vector control of both induction and synchronous motors at up to 599 Hz.
• It features dynamic torque vector control, with 200% starting torque at 0.3 Hz.
• It offers the “highest torque responsiveness to sudden load changes in its class,” minimising variations in rotational speed and suppressing vibrations.
• Precision positioning control is enabled with eight positioning data points for pulse string inputs.
• An orientation function allows machinery to be held in position via servo-locking after a stoppage.
• A PID auto-tuning function allows for quicker start-ups and simpler adjustment of proportional and integral gains.
• A load limiter improves reliability by stopping the drive when excessive torque is detected.
• Customisable logic functions with up to 260 steps eliminate the need for a PLC.
• A built-in RS-485 terminal and an RJ45 port which simplifies multi-drop connections.
• A choice of multi-function keypads with LED or LCDs is available.
• The LCD keypad features enhanced diagnostic functions, with optional memory card slots and Bluetooth support.
• Maintenance is enhanced through trace-back functions, PC and mobile loader compatibility, and easier troubleshooting.
• The drive is capable of storing alarm histories, including waveform data from before the alarms occurred.
• IP55 protection for the drive’s rear cooling system enhances cooling outside of control panels, reducing costs and saving space.
• It conforms to European safety standards – EN ISO 13849-1:2015 and IEC/EN 61800-5-2:2016 SIL3.
• The PCB coating is strengthened according to IEC 60721-3-3 class 3C2.
• The drive is globally compliant with CE, cUL, UKCA, and EAC certifications, and meets the Eco-design Directive.
